If your Mercedes-Benz has entered "limp mode" or the dashboard is illuminated with engine fault codes like P0016, P0015, or P0340, you are facing a critical timing issue. These codes are synonymous with Mercedes camshaft and crankshaft correlation errors—a problem that, if ignored, can lead to a multi-thousand-dollar engine rebuild.
At Huizhan Automotive, we specialize in the engineering and manufacturing of timing components. In this guide, we’ll break down what these codes mean, the common symptoms to watch for, and how to fix them using OE-standard parts.
A camshaft fault code is triggered when the Engine Control Unit (ECU) detects a mismatch in timing between the crankshaft and benz camshaft, or receives abnormal signals from the camshaft position sensor (CMP). Modern Mercedes engines use Variable Valve Timing (VVT) systems that rely on precise Mercedes camshaft positioning for optimal performance, fuel efficiency, and emissions control.
When the system falls out of sync, the ECU logs codes like P0016 (correlation error), P0015 (over-retarded timing), or P0340 (sensor circuit issue). These problems are especially common in high-mileage Mercedes models due to timing chain stretch, oil sludge, or failing adjusters.
Here's a clear overview of the top codes associated with benz camshaft issues:
Fault Code | Meaning | Main Causes | Recommended Action |
P0016 | Crankshaft/Camshaft Correlation Error | Stretched timing chain, worn gears, faulty sensor, VVT issues | Inspect/replace timing chain & tensioner; check Mercedes camshaft alignment |
P0015 | Camshaft Timing Over-Retarded | Faulty VVT solenoid/phaser, sludge buildup, oil flow problems | Clean or replace solenoid; inspect the benz camshaft adjuster |
P0340 | Camshaft Position Sensor Circuit Malfunction | Faulty CMP sensor, damaged wiring, and connector corrosion | Test/replace sensor; inspect harness and connectors |
These codes often appear together. For example, a stretched Mercedes camshaft timing chain can trigger both P0016 and P0015.
What Does P0016 Mean?
This code indicates the ECU sees a significant timing mismatch between the crankshaft and Benz camshaft positions. In interference engines like most Mercedes, even a few degrees of error can be dangerous.
Common Causes (Ranked by Frequency):
Timing chain stretch or worn plastic guides (very common in M271 engines after 80,000–120,000 miles)
Worn or failing camshaft phasers/adjusters
Faulty camshaft or crankshaft position sensors
Damaged reluctor wheel or oil contamination affecting VVT
Low oil pressure or incorrect oil viscosity
Symptoms You Might Notice:
Illuminated check engine light
Rough idle or engine vibration
Misfires under load
Loss of power and poor acceleration
Hard starting or long cranking time
Rattling noise on cold start (classic early warning for timing chain issues)
How to Diagnose and Fix P0016:
Scan for codes and freeze-frame data.
Check engine oil level, condition, and pressure.
Perform a timing chain inspection (remove valve cover if needed).
Test camshaft and crankshaft sensors with a multimeter or oscilloscope.
If the chain stretch exceeds 5–8 degrees, replace the entire timing kit, including the camshaft gears, tensioner, and guides.
Using high-quality OE-standard Mercedes camshaft replacement parts from Huizhan Automotive ensures proper fit and long-term reliability.

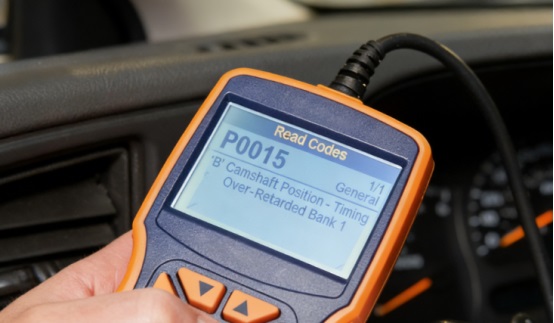

What Does P0015 Mean?
The camshaft is rotating too slowly (retarded) compared to the ECU’s commanded position, often due to hydraulic or mechanical issues in the VVT system.
Common Causes:
Stuck or failing VVT solenoid (camshaft adjuster magnet)
Sludge or varnish from infrequent oil changes
Restricted oil passages or a worn benz camshaft phaser
Weak timing chain tensioner
Symptoms:
Engine hesitation during acceleration
Reduced fuel economy (noticeable drop in MPG)
Unusual engine noise (ticking or rattling)
Poor throttle response
Step-by-Step Fix:
Start with an oil change using Mercedes-approved full synthetic oil (MB 229.5 or equivalent).
Clean or replace the VVT solenoid.
Inspect and replace the camshaft adjuster/phaser if worn.
Flush oil passages if sludge is present.
In many cases, replacing the Mercedes camshaft adjuster solenoid alongside fresh oil resolves the code without full timing chain service.
What Does P0340 Mean?
The ECU is not receiving a valid signal from the camshaft position sensor, which is critical for ignition timing and fuel injection.
Common Causes:
Failed camshaft position sensor
Damaged wiring harness or corroded connectors (often due to oil leaks from cam magnets)
Rare ECU faults
Symptoms:
Engine cranks but won’t start
Intermittent stalling
Poor performance and misfires
Check engine light with no other obvious drivability issues
How to Fix P0340:
Visually inspect the sensor and connector for oil intrusion.
Test sensor resistance and voltage output.
Replace the benz camshaft position sensor (inexpensive and quick fix).
Repair any damaged wiring.
Pro tip: Always address oil leaks from camshaft adjustment magnets first, as they commonly contaminate the harness.
The short answer: Technically, yes—but you shouldn't.
While your Mercedes-Benz might still start and move with a P0015 or P0340 code, driving with these faults is a gamble that could turn a simple sensor swap into a multi-thousand-dollar engine rebuild. Here is why you should address benz camshaft issues immediately:
1. The Risk of Engine "Limp Mode"
When the ECU detects a timing mismatch (P0016), it often puts the vehicle into Limp Home Mode. This drastically reduces engine power and limits RPMs to protect the hardware. Attempting to merge onto a highway or overtake in this state is a significant safety hazard.
2. Catastrophic Engine Failure
If the fault code is caused by a stretched timing chain or a failing camshaft adjuster (common in the M271/M272 engines), your timing could "jump." In an interference engine like a Mercedes, this means the valves and pistons can collide. The result? Total engine failure.
3. Damage to the Catalytic Converter
Incorrect camshaft timing means the valves aren't opening and closing at the right moments. This leads to incomplete combustion, sending raw fuel into the exhaust system. This will quickly overheat and destroy your expensive catalytic converters.
4. Poor Fuel Economy and Stalling
Even if the car feels "fine", a faulty benz camshaft signal causes the engine to run rich or lean. You will notice a sharp drop in MPG and may experience unpredictable stalling at stoplights or intersections.
Expert Recommendation: If you see P0016 or P0015, avoid high-speed driving and heavy acceleration. Have the timing components inspected immediately.
Prevention is far cheaper than repair. Follow these proven strategies:
Strict Oil Maintenance — Change oil every 5,000–7,500 miles (or sooner in severe conditions) with genuine Mercedes-approved synthetic oil. Dirty oil is the first killer of VVT systems and benz camshaft components.
Listen for Cold-Start Rattle — A brief rattle on startup signals timing chain stretch or failing tensioner—don’t ignore it.
Inspect Camshaft Magnets Regularly — Oil leaks from these solenoids can destroy wiring and trigger multiple codes.
Monitor Tensioner and Guides — Replace proactively at 100,000+ miles on M271/M272 engines.
Use Quality Replacement Parts — When servicing, choose precision-engineered Mercedes camshafts and timing kits from specialists
If the diagnosis confirms wear on the camshaft lobes, phasers, or chain, replacement is necessary. At Huizhan, our benz camshaft products are manufactured to strict OEM tolerances, offering excellent durability for both daily drivers and high-performance applications. We supply wholesalers and repair shops with full kits that include camshafts, phasers, chains, tensioners, and sensors—ensuring one-stop reliability.
Typical repair times:
Camshaft position sensor replacement: 1–2 hours
VVT solenoid/phaser: 2–4 hours
Full timing chain and Mercedes camshaft service: 6–12 hours (engine-out in some models)
1. Strict OE-Quality Manufacturing Standards
Every Mercedes camshaft and timing component we produce undergoes rigorous material selection, precision CNC machining, and multi-stage quality testing. We adhere to strict OEM tolerances to ensure perfect fitment, optimal valve timing, and long-term durability.
2. Strong Engineering Expertise & Customization Capability
Our experienced engineering team possesses deep technical knowledge of Mercedes M271, M272, M273 and other complex engines. Whether you need standard benz camshaft replacements or custom-developed phasers and timing kits for specific applications, we can respond quickly with professional solutions tailored to your exact requirements.
3. Comprehensive Product Range for One-Stop Sourcing
We offer a full lineup of engine timing system parts:
Premium benz camshafts and camshaft phasers
High-strength timing chains, tensioners, and guides
VVT solenoids and adjuster magnets
1. What is the most common camshaft fault code in Mercedes?
P0016 is the most common, usually caused by timing chain wear or sensor issues.
2. Is P0016 always a bad benz camshaft?
No—80%+ cases involve phasers, chain stretch, or sensors first.
3. Is P0340 serious?
Yes. It can cause engine stalling or failure to start and should be fixed immediately.
4. Can low oil cause camshaft codes?
Yes. Poor oil flow can affect timing systems and trigger codes like P0015.
5. Should I replace both camshaft sensors at once?
If one has failed due to oil contamination, the other is likely in a similar condition. Replacing them in pairs is a best practice for long-term reliability.
